Sonntag, 6. September 2009

Adjustable Upper Lateral Links

The upper lateral steel link has a thread welded in and two nuts. This allows me to adjust the wheel camber to -1 deg. On the left side of the upper ball bushing you can see the polyurethane (PU) bushing from Superflex inside the fork of the longitudinal link (castor arm). Powerflex part no. is PFF1-301. Similar PU bushings can be found at SuperPro.

Mittwoch, 12. August 2009

Wheel Alignment Data Sheet

Front Axle Kinematic Settings

Camber with serial upper links (non adjustable): 0° 20’ (tolerance +/- 0° 30’)

Camber with adjustable upper links (preferred): -1° 00’ (tolerance +/- 0° 10’)

Camber difference right/left wheel max.: 0° 40’

Toe (total axle) steering wheel straigt ahead: 3,0 mm (tolerance +/- 0,5 mm)

Toe angle @ 15“ wheels: 0° 13’

Toe angle @ 14“ wheels: 0° 14’

Toe difference angle @ 20° steering angle: n.c.

Caster adjustable at longitudinal link: 1° 30’ (tolerance +/- 0° 30’ )

Preferred sporty caster value: 2° 45'

Caster difference right/left wheel max.: 0° 20’

Kingpin inclination: 8° 35’ (tolerance +/- 0° 30’) not adjustable

Preferred sporty kingpin inclination: 9° 35'

Rear Axle Kinematic Settings (rigid axle)

Camber (non adjustable):

Camber difference right/left wheel max.:

Toe angle (non adjustable):

Caster: n.c.

Testing conditions:

Put 45 kg weight on each driver and copilot seat. And another 25 kg in both foot rooms. No passengers inside, fuel tank full.

Dienstag, 7. Juli 2009

Oil Temperature Sensor

I experimented with an oil temperature sensor instead of the oil dipstick but the device was broken over the time and I had oil leakage problems. Now I replaced it by a temperature sensor in an additional flange between oil filter and engine block. I used a kit by Raid Automotive Concepts. It has a 3/4 unf thread for conventional W718/2 Alfa/FIAT oil filter cartridges and a conventional oil filter mounting pedestal. The anodized aluminum extra flange is able to accept a small sensor with 1/8 inch 27 NPT conical thread.

Sensor specs of the new oil filter sensor: 1,8 kOhm @ 20°C - 150 Ohm @ 100°C

Montag, 22. Juni 2009

Tiefenbronn Classic Rallye 2009

This year's Tiefenbronn Classic an Sunday, 21st of June had a lenght of about 130 km between the nothern part of the Black Forest and the river Enz wine region. Almost 200 cars and 20 historic bikes participated. Among them were former Mille Miglia competitors Herbert Linge and Paul Ernst Strähle with their historic beetle and Porsche 356 "V2". Among the ancient heroes we also met Eberhard Mahle, Günter Steckkönig and Paul Hensler - all familiar with historic Porsche cars.

Here is the GT junior in the Bad Liebenzell Park. In the youngtimer class from 1972 our grid number was 121.

Sonntag, 10. Mai 2009

Radiator Thermoswitch

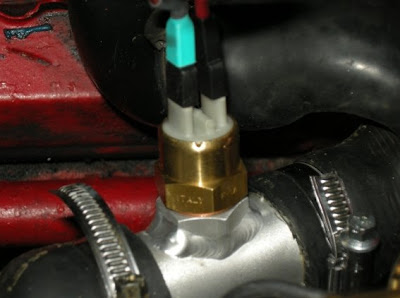

I replaced the adjustable Kenlowe thermoswitch by a fixed thermostatic switch. Radiator on @ 88°C - off @ 83°C. The switch comes from a Volvo 360 and it's metric screw is M14 x 1.5. The copper T-shaped fitting comes with a tube diameter of 32 mm (2000cc engine needs min. 35 mm). It's mounted in the lower radiator hose between the radiator and the water pump. Customized T-fittings are available at Schweizer-Motorsport.

Sonntag, 1. März 2009

Trunk Lid Repair

After a little welding job the trunk lid was painted red again (Ferrari rosso l300).

Mittwoch, 18. Februar 2009

Photo Competition @ MotorKlassik

*** Sorry, the Alfa was not the best photo of the show! ***

Win a Leica C-Lux compact camera and vote for one of my photos at the MotorKlassik photo competition (see MotorKlassik magazine no. 3/2009) and on the net here:

MotorKlassik online
This is my photo of the GT junior taken in autumn 2008. It was the fist test drive with the new 6 x 14 MOMOs.

This one I took at the Neuenbürg Classic Day in September 2008. Nice gauges! Water resistant?
Please guess - what muscle car is it?

Sonntag, 18. Januar 2009

Oldtimer Meetings and Competitions 2009

We will participate in these 2009 events:

21.06. 2.Tiefenbronn Classic Oldtimer-Freunde-Tiefenbronn
27.-28.06. 10. Bosch Boxberg Klassik

and next year:

Mai 2010: GÄU Veteranen-Rallye MSC Herrenberg
